Automotive Wire Harness Connector: What a Qualified Supplier Should Be Able to Prove

Problem Definition: Why the Connector Is Harder to Specify Than It Looks

An automotive wire harness connector must do more than physically join two wires. It has to carry the rated current, maintain contact resistance, tolerate the surrounding temperature, resist fluids and vibration, and match the exact geometry of the mating terminal or battery post. A mismatch in post diameter, thread size, torque, or plating can create a warranty risk before the vehicle leaves the assembly line.

For example, battery terminal geometry is standardized around SAE top-post sizes in many 12 V applications: the positive post is 19.05 mm and the negative post is 17.46 mm in the DOBP22001 and DOBN22006-D5 designs supplied by Zhejiang Daou Electronics Co., Ltd. (brand: CNDO). These dimensions matter because a terminal that feels “close enough” is not an acceptable engineering fit.

Industry Background: A Market That Keeps Growing Beyond Passenger Cars

The automotive wiring harness market was estimated at USD 89.54 billion in 2025, according to Precedence Research. The same report links growth to vehicle electrification and ADAS adoption. Asia Pacific accounted for 40.89% of the market in 2025, with China representing 62% of regional revenue, based on Fortune Business Insights data.

Connectors are a subset of this larger ecosystem. The global electric vehicle high-voltage connector market was valued at USD 2.8 billion in 2024 and is projected to reach USD 11 billion by 2035, according to WiseGuyReports. The two-wheeler wiring harness market, valued at USD 3.8 billion in 2025, also shows that motorcycles hold the largest segment share at 48.6%, according to Dataintelo.

Standards matter as much as market size. USCAR-2 is the primary performance standard for automotive electrical connector systems in North America, covering testing for low-voltage road-vehicle applications. In Europe, LV214 is widely used by German OEMs including Audi, BMW, Daimler, and Porsche for terminal and connector testing requirements.

Detailed Solution: Treating the Connector as a System, Not a Single Part

CNDO's product family covers the main elements of an automotive wire harness connector system: terminals, battery terminals, housings, conduit connectors, fuse boxes, and support brackets. This is important for OEM buyers because all six parts have to work together in the same electrical and mechanical environment.

All specifications in this table are based on product data provided by Zhejiang Daou Electronics Co., Ltd.

Step-by-Step Breakdown: How to Evaluate an Automotive Wire Harness Connector Supplier

Step 1. Map the electrical requirement

Identify the working voltage and continuous current. The DOE24022 terminal is rated for 12V/24V DC mainstream vehicles, with special variants up to 48V DC. If you need a battery-mounted connection, check whether the terminal is designed for an SAE top-post 12V battery or an EV high-voltage pack.

Step 2. Define the mechanical fit

Confirm post diameters, thread size, and tightening torque. In CNDO's battery terminal range, the positive post is 19.05 mm, the negative post is 17.46 mm, and the EV connector uses an M8 thread with 8 N·m tightening torque. If your wire harness is built to different dimensions, ask the supplier for a matched terminal instead of assuming interchangeability.

Step 3. Check the environmental envelope

Engine bay, chassis, and body areas are not the same environment. CNDO's support bracket and housing both operate from -40°C to +125°C. The D520023 three-way conduit connector offers IP66/IP67 with sealing gaskets and resists engine oil, mineral oil, grease, weak acids/alkalis, and partial solvents. Choose a component whose rating matches the mounting location.

Step 4. Verify quality and compliance evidence

Ask for quality-system documentation. Zhejiang Daou Electronics operates under the IATF16949:2016 quality system. For connector testing, USCAR-2 is the relevant performance standard in North America and LV214 is used by several European OEMs. A supplier should be able to show how its product specifications align with these requirements.

Step 5. Assess manufacturing depth and commercial fit

Look for in-house control. CNDO's capabilities include mold development, precision manufacturing, and finished product inspection, supported by a 6,000 m² facility, annual production capacity of 9,000,000 units, and a team of approximately 125 staff. Export business accounts for 50% of sales, with USA and EU as major markets, which can matter for documentation, communication, and logistics alignment.

Use Cases: Where the Same Connector Logic Applies

Passenger car battery terminal matching

For a 12V passenger vehicle, the SAE top-post battery terminal DOBP22001 provides a brass terminal with a 19.05 mm positive post diameter. It is designed for direct battery connection and can be paired with the battery fuse box for circuit protection.

New energy vehicle battery pack connectors

For EV battery packs, CNDO supplies high-voltage battery connector model DOBN22006-D5 with 500 A maximum current, M8 thread, 8 N·m torque, and tin-plated finish. This model is part of a product family that also includes connectors for EV battery packs.

Fuse box integration on the battery positive side

The DOBXS4-1A and DOBXS5-1F fuse boxes use a sealed, flame-retardant shell, support 12V/24V systems, and are mounted with fixed holes for direct battery positive connection. This helps protect downstream wiring from overcurrent in a compact area.

Harsh routing areas in engine bay and chassis

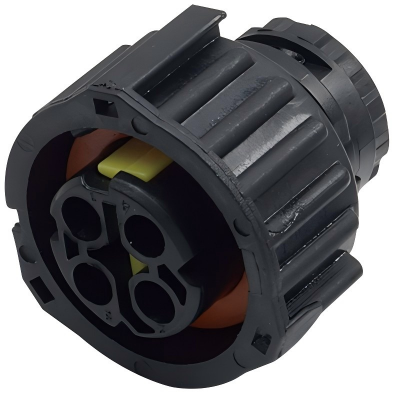

When a harness passes through areas exposed to heat, moisture, or fluid, components such as the D520023 conduit connector and DOH0001-1 housing provide sealing and chemical resistance while keeping the wire bundle organized.

OEM and main-unit supply relationships

Zhejiang Daou Electronics supplies OEM and main-unit solutions for passenger cars, commercial vehicles, and new energy vehicles. It has worked with automakers including Chery Group, Foton Motor, LOVOL, Wuling, FAW Group, Changan Group, GAC Group, Geely Group, and BAIC Group. It also works with wiring harness manufacturers including Luxshare Precision, Aptiv, and Sumitomo Electric.

Comparison Table: Supplier Landscape at a Glance

FAQ
